Product Introduction
The 160KVA dry-type distribution transformer is manufactured using high-quality copper windings and vacuum cast resin insulation technology in compliance with IEC60076 standards. It is widely used in industrial plants, commercial buildings, hospitals, data centers, renewable energy systems, and high-temperature regions.
Compared with oil-immersed transformers, dry-type transformers eliminate oil leakage and fire hazards, making them safer and more environmentally friendly for indoor and densely populated installations.
HENGTONG POWER provides OEM/ODM customization services for voltage, frequency, enclosure protection, temperature rise, and special environmental requirements.
Key Product Points
-
Full Copper Windings for Stable Performance
High-purity oxygen-free copper improves conductivity, reduces losses, and extends transformer lifespan.
-
High-Temperature Fire-Resistant Design
Vacuum cast resin insulation provides excellent flame-retardant and explosion-proof performance.
-
Oil-Free Safer Operation
No insulating oil means no leakage, fire risk, or environmental pollution.
-
Strong Anti-Interference Capability
Optimized electromagnetic shielding minimizes harmonic interference and improves power quality.
-
Energy-Saving Low Loss Design
Premium silicon steel core significantly reduces no-load and load losses.
-
OEM/ODM Customization Support
Custom voltage, frequency, enclosure, and climate solutions available.
Technical Specifications
| Technical Item | Specification |
| Product Type | Dry-Type Distribution Transformer |
| Model | SCB10 / SCB11 / SCB13 |
| Rated Capacity | 160KVA |
| HV Voltage | 11KV |
| LV Voltage | 0.4KV |
| Frequency | 50Hz / 60Hz |
| Phase | Three Phase |
| Winding Material | 100% Copper |
| Cooling Method | AN / AF |
| Insulation ClassA | A Class |
| Temperature Rise | ≤100K |
| Vector Group | Dyn11 |
| Impedance Voltage | 4%~6% |
| Protection Grade | IP20 / IP23 / IP44 |
| Ambient Temperature | -25℃ to +55℃ |
| Noise Level | ≤55dB |
| Partial Discharge | ≤10PC |
| Standards | IEC60076 / ANSI / GB |
| Fire Resistance Class | F1 |
| Climate Class | C2 |
| Environmental Class | E2 |
| Installation Type | Indoor |
| Enclosure Material | Galvanized Steel / Stainless Steel |
| Cooling Fans | Optional |
| Monitoring System | PT100 / Temperature Controller Optional |
| Applications | Industrial, Commercial, Solar, Data Centers |
Solutions for High-Temperature Countries
Market Challenges
Many transformers operating in Middle East, Africa, and Southeast Asia face:
- Insulation aging caused by extreme heat
- Fire risks in oil-filled transformers
- Dust and humidity affecting reliability
- Overheating during continuous full-load operation
- Unstable grid voltage conditions
Our Solutions
-
Explosion-Proof Flame-Resistant Structure
Cast resin insulation materials provide self-extinguishing performance and eliminate combustion risks.
-
High-Temperature Resistant Cooling Design
Optimized ventilation channels and optional forced-air cooling ensure stable operation in hot climates.
-
Moisture & Corrosion Protection
Anti-moisture and anti-salt spray coating available for coastal and humid regions.
-
Intelligent Temperature Monitoring
Optional PT100 temperature controller supports overheating alarm and automatic cooling.
-
Enhanced Short-Circuit Strength
High mechanical strength winding structure improves short-circuit withstand capability.
-
Renewable Energy Grid Compatibility
Suitable for solar power, energy storage, industrial equipment, and unstable grids.
FAQ
Q1: Is this transformer suitable for Middle East high-temperature environments?
A: Yes. The transformer is designed for temperatures up to 55℃ and supports optional forced-air cooling systems.
Q2: What are the advantages over oil-immersed transformers?
A: Dry-type transformers are safer, environmentally friendly, maintenance-friendly, and eliminate oil leakage risks.
Q3: Do you provide OEM customization?
A: Yes. We support customized voltage, frequency, enclosure protection, and project specifications.
Q4: Which international standards do you comply with?
A: Our products comply with IEC60076 standards and can also meet ANSI or GB requirements.
Q5: Can this transformer be used for solar energy projects?
A: Yes. It offers excellent harmonic resistance and voltage stability for renewable energy systems.
Q6: Do you support EPC contractor projects?
A: Yes. We provide technical consultation, drawing confirmation, product selection, and export packaging support.
Company Introduction
About Us

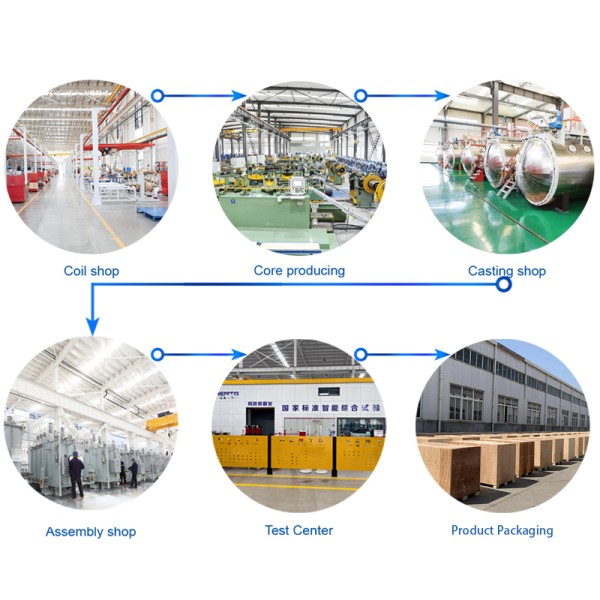

HENGTONG POWER is a professional transformer manufacturer specializing in dry-type transformers, oil-immersed transformers, substations, and customized power distribution solutions.
Our products are widely exported to the Middle East, Africa, Southeast Asia, and South America for industrial, commercial, renewable energy, and infrastructure applications.
We provide:
- Reliable power distribution solutions
- OEM/ODM manufacturing
- EPC project support
- International standard products
- Fast delivery and after-sales service
Get reliable dry-type transformer solutions from HENGTONG POWER today.
